SELF ELEVATINGPLATFORM

Ship and Yacht Engineering Ltd offers design , GLOBAL CALCULATION and construction of Brille 1, Brille 2, Steel Legs, Crane Foundation, Boom Rest / HeliDeck of SELF ELEVATING PLATFORM.

MEGA YACHTS

Ship and Yacht Engineering Ltd. is expert on Mega Yacht Design will analyze your needs and help you develop an optimization solution based on your efficiency goals and budget. We offers design , static analysis and construction of :

a. Side Shell Doors

• Crew Entrance Doors
• Machinery Doors
• Pilot Doors
• Bunker Doors
• Passenger Entrance Doors
• Tender Garage Doors

b. Embarkation Platforms

c. Bathing or Diving Platforms

d. Swimming Pool Covers

e. Helicopter Lifts & Hatches

f. Pleasure Boat Davits

g. Movable Bulwarks

h. Telescopic/Collapsible Mast-Arrangements

i. Bunker Hatches

Please welcome to our

PASSENGER VESSELS

Ship and Yacht Engineering Ltd. offers a wide range of shell doors, platforms and hatches not only for passenger vessels or yachts. All components are made of high quality materials e.g. stainless steel, steel, aluminium or GRP. All kinds and shapes of shell doors are available as either a closed or an open box design. Supervision for installation or harm key is also available.

Design 3D, Static Analysis, Frequency, Arrangement of Equipment, Design of Fittings, Fabrication Drawings of :

a. Side Shell Doors

• Crew Entrance Doors
• Machinery Doors
• Pilot Doors
• Bunker Doors
• Passenger Entrance Doors

b. Tender Embarkation Platforms

c. Baggage Lifts & Platforms

d. Proviant Lifts

f. Signal Mast

• Structure
• Wings
• Arms
• Equipment support, ropes

Design , Static Analysis and construction of :

a. Side Shell Doors of any Type b. Bow Visors, Doors and Ramps c. Flood Doors d. Stern Doors and Ramps e. Car Decks (movable) f. Ramp Covers g. Ventilation Duct Closing System

DETAILS AND FABRICATION DRAWINGS

Ship and Yacht Engineering E.Hofmann Ltd. is entirely fit to render design services,starting with conceptual design and calculations to ‘Class’ requirements,and ending with detail , classification drawings and fabrication drawings. We use AutoCAD, Catia v5 and Autodesk Inventor as software.

We compile full descriptions specifications. About the ending of the design we offer the tolerance protocols , installation plans and documentation.

For details please look at our

Example :

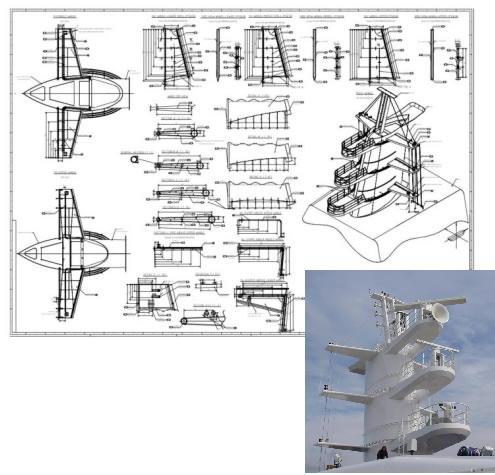

	Signal Mast - " Celebrity cruise " was built by Mayer werft
	Watertight sliding Door - "Daniel Lavel"Dradger, built by Dragages Port French

Concept Design: 3D Design Animation Kinematic Weight Calculation Presentation Cost Calculation Time shedule

The more projects we complate , the more we learned how using the new software CAD/CAM products in the way engineering, approach the problems. Visialize the problem , which is helped provide quicker and better solution.

We provide the high quality workshop drawings.

SHIP &YACHT ENGINEERING - CALCULATION

    10 years of doing successfully FEM Analysis of individual parts and global calculation

Ship and Yacht Engineering- E.HofmannLtd. performs finite element analysis using state of the art software ANSYS.
We can do Finite-Element analysis and calculations for you, regarding ship structures or sections, as well as equipment and/or fittings. The finite element analysis methods result in the stress distribution, displacements and reaction loads at supports etc. for the model. Finite element analysis techniques can be used for a number of scenarios e.g. Design optimization, material weight.

• 3-dimensional structural analysis using Finite Element modeling for thin shells and shell structures minimization, shape optimization, code compliance etc., and for the solid structures
• 3-dimensional thermal analysis (steady state thermal analysis, transient thermal analysis and thermal stress analysis) using Finite Element modeling for thin shells and shell structures, and for solid structures
• 2-dimensional axi-symmetric structural analysis using Finite Element modeling for thin shells and shell structures
• Non-linear structural analysis (using FEA software) for geometric nonlinearities and material nonlinearities. This includes Contact analysis incorporating gaps in the structures.
• Modal analysis, Buckling analysis (non-linear buckling analysis and eigenvalue buckling analysis) using FEA techniques and FEA software.

1. Static Analysis Contains :
2. General Information
3. Permissible Stresses -Material
4. Geometry / Design Load / Support/ Mesh
5. Ansys Report

            -Deformation

            -Reaction Forces

            -Equivalent Stress

Calculations maybe include Mathlab / Excel spreadsheet calculations.

Calculations of minimum retirement thickness based on structural engineering calculations to provide construction support for various stages of construction.

For more information look at design:

CONTACT US

Thank you for your interest in our company.

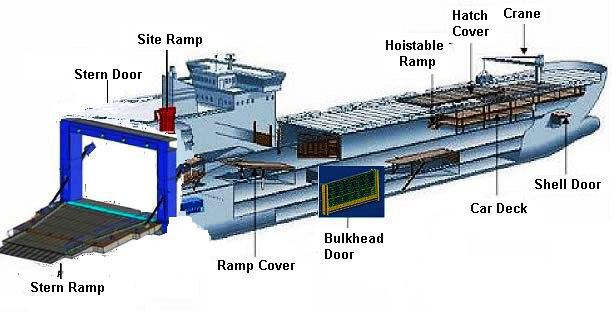

PRODUCTS & SOLUTIONS Ship and Yacht Engineering Ltd. offers a wide range of shell doors, platforms and hatches not only for passenger vessels or yachts. All components are made of high quality materials e.g. stainless steel, steel, aluminium or GRP. All kinds and shapes of shell doors are available as either a closed or an open box design. Bow Visors, Bow and Stern Doors/Ramps, Ramp Covers and Movable Car Decks for the ro-ro sector. Hatch Covers of any type, weather lift away, side rolling or folding, for the merchant marine sector. Of course we design and calculation a lot of outfittings. Supervision for installation or harm key is also available.

Visit our Gallery
